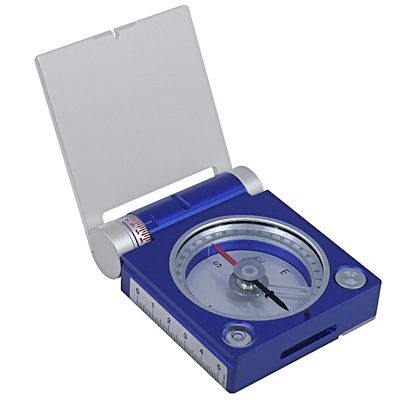

BREITHAUPT 3030 GEKOM Pro Basic Stratum Geological Compass

BREITHAUPT 3030 GEKOM Pro Basic Stratum Geological Compass

$995.00 Each

Stratum measurements can be taken according to the method of Prof. Dr. Clar (two-circle compass, azimuth of dip and angle of dip of plains or linear features can be determined in one single operation)

Comes with nylon case

Vertical circle (dip measuring) with 5° graduation, reading by estimation 1°, visible from above, the azimuth of dip and angle of dip can be read at a glance
Dip measuring range 270°
Automatic arresting compass needle when needle is not in use
Azimuth circle with 2° graduation, 1° by estimation
Inclination adjustable
Declination adjustment ±60°
Circular spirit level
Waterproof high quality one-piece housing made of light metal
Dimensions (closed): 2.8? (72mm) x 3.5? (x90mm) x .85? (21.5mm)
Weight: .6 lbs (270g)
Made in Germany

Breithaupt Kassel was founded in 1762 in Germany and has been headed under the Breithaupt family name for 8 generations. This long span within the business has resulted in Breithaupt Kassel developing many exemplary achievements which have since become industry standards in the fields of mining, surveying, forestry and geology. Within the company, an operation and code of ethics results in strict production inspections after each manufacturing operation guarantee a consistently high standard of quality in accordance with international regulations. Ensuring that you will receive only the best instrument, nothing less.
